RightMark Audio Analyzer test report

Testing device UFX to Babyface
Sampling mode 24-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.3.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.2 dB / -0.3 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.04, -0.59
Good
Noise level, dB (A)
-108.9
Excellent
Dynamic range, dB (A)
108.7
Excellent
THD, %
0.0018
Excellent
THD + Noise, dB (A)
-83.5
Good
IMD + Noise, %
0.0055
Excellent
Stereo crosstalk, dB
-108.2
Excellent
IMD at 10 kHz, %
0.0048
Excellent
General performance

Very good

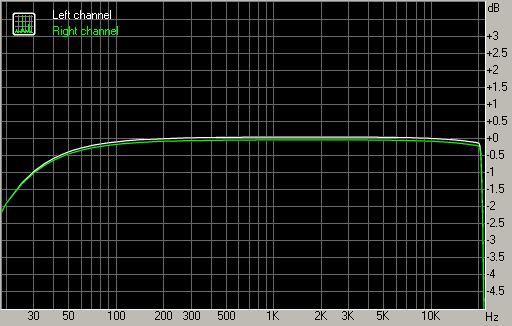

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-1.92, +0.04
-1.92, -0.04
From 40 Hz to 15 kHz, dB
-0.59, +0.04
-0.65, -0.04

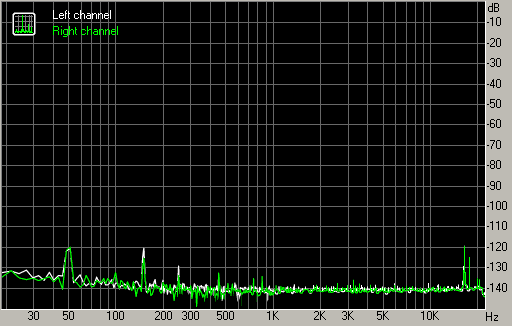

Noise level

Spectrum graph


Left
Right
RMS power, dB
-107.2
-107.4
RMS power (A-weighted), dB
-108.8
-109.0
Peak level, dB FS
-94.3
-94.2
DC offset, %
-0.0
-0.0

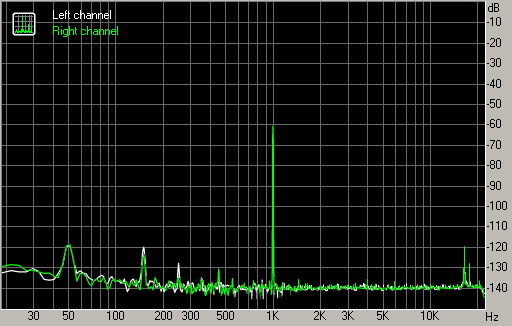

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+107.1
+107.2
Dynamic range (A-weighted), dB
+108.7
+108.7
DC offset, %
-0.00
-0.00

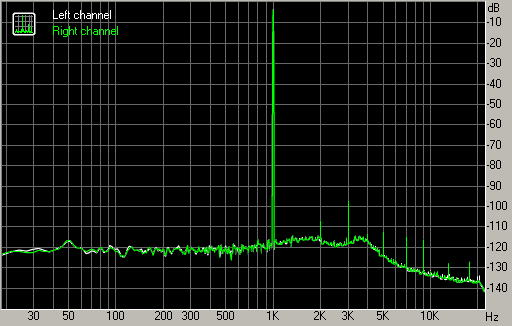

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0013
+0.0022
THD + Noise, %
+0.0052
+0.0055
THD + Noise (A-weighted), %
+0.0065
+0.0069



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0054
+0.0055
IMD + Noise (A-weighted), %
+0.0067
+0.0067



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-106
-106
Crosstalk at 1000 Hz, dB
-107
-107
Crosstalk at 10000 Hz, dB
-106
-106



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0047
0.0050
IMD + Noise at 10000 Hz,
0.0050
0.0050
IMD + Noise at 15000 Hz,
0.0045
0.0047
