RightMark Audio Analyzer test report

Testing device UFX ASIO USB 1-2
Sampling mode 24-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.6 dB / -0.6 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.03, -0.06
Excellent
Noise level, dB (A)
-111.4
Excellent
Dynamic range, dB (A)
111.3
Excellent
THD, %
0.0008
Excellent
THD + Noise, dB (A)
-96.6
Excellent
IMD + Noise, %
0.0015
Excellent
Stereo crosstalk, dB
-111.9
Excellent
IMD at 10 kHz, %
0.0015
Excellent
General performance

Excellent

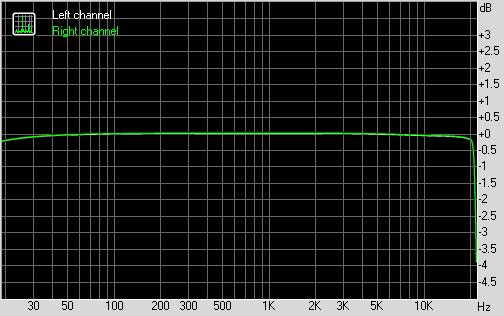

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.19, +0.02
-0.19, +0.03
From 40 Hz to 15 kHz, dB
-0.07, +0.02
-0.06, +0.03



Noise level

Spectrum graph


Left
Right
RMS power, dB
-110.2
-110.2
RMS power (A-weighted), dB
-111.4
-111.4
Peak level, dB FS
-93.7
-94.3
DC offset, %
-0.0
-0.0

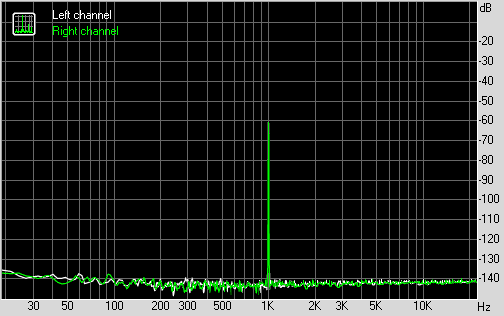

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+110.2
+110.3
Dynamic range (A-weighted), dB
+111.3
+111.4
DC offset, %
-0.00
-0.00

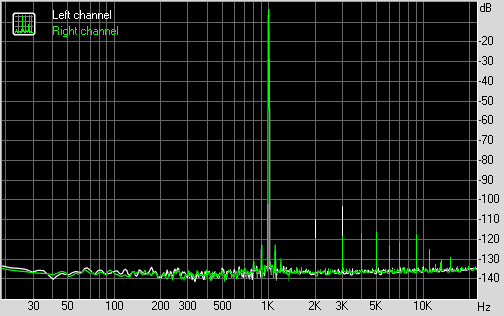

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0011
+0.0005
THD + Noise, %
+0.0016
+0.0012
THD + Noise (A-weighted), %
+0.0018
+0.0012



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0016
+0.0014
IMD + Noise (A-weighted), %
+0.0013
+0.0012



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-111
-114
Crosstalk at 1000 Hz, dB
-111
-111
Crosstalk at 10000 Hz, dB
-107
-106

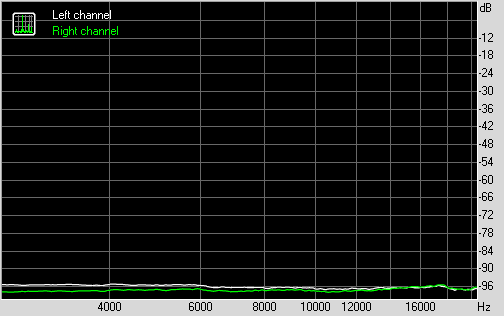

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0017
0.0014
IMD + Noise at 10000 Hz,
0.0015
0.0013
IMD + Noise at 15000 Hz,
0.0015
0.0015
