3-4 to 1-2 +4dBu
5-6 to 1-2 +4dBu
7-8 to 1-2 +4dBu
1-2 to 9-10 XLR Gain 0dB

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 44 kHz




Summary

Test3-4 to 1-2 +4dBu5-6 to 1-2 +4dBu7-8 to 1-2 +4dBu1-2 to 9-10 XLR Gain 0dB
Frequency response (from 40 Hz to 15 kHz), dB: +0.09, +0.01+0.02, -0.06+0.07, -0.01+0.05, -0.08
Noise level, dB (A): -111.4-111.4-111.4-113.0
Dynamic range, dB (A): 111.4111.4111.4113.0
THD, %: 0.00110.00140.00130.0009
IMD + Noise, %: 0.00500.00540.00490.0050
Stereo crosstalk, dB: -112.8-111.3-112.5-114.4



Frequency response

Spectrum graph

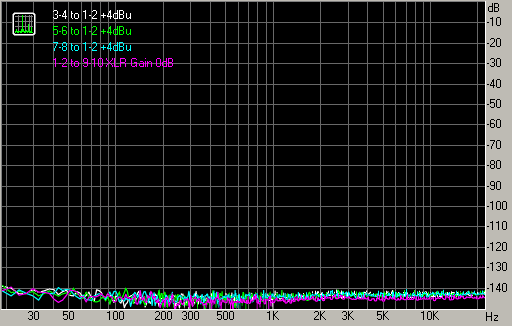

Noise level

Spectrum graph


Dynamic range

Spectrum graph

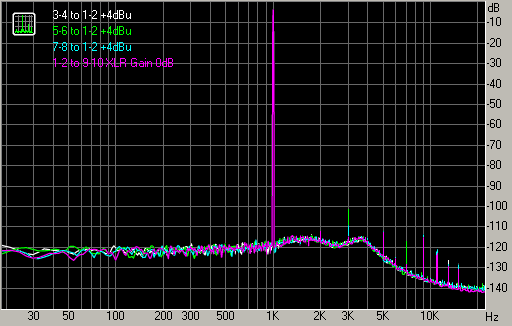

THD + Noise (at -3 dB FS)

Spectrum graph

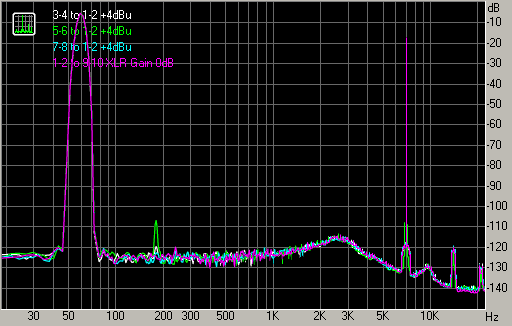

Intermodulation distortion

Spectrum graph


Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
